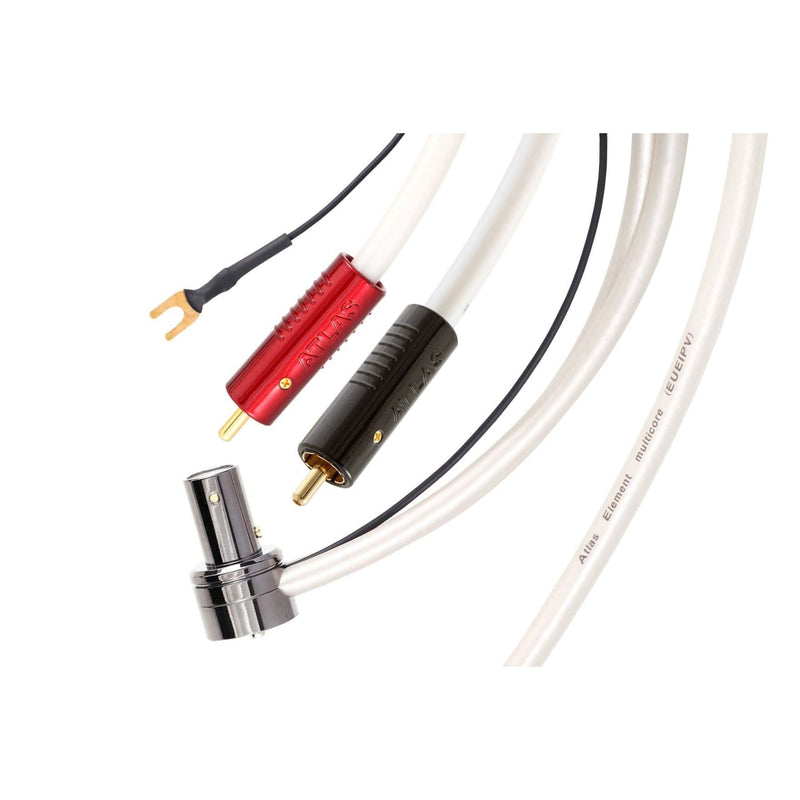

Atlas Element Achromatic Tonearm RCA Cable

Atlas Element Achromatic RCA Tonearm Cable

The resurgence of vinyl has prompted the introduction of new Atlas tonearm/turntable products to optimise your vinyl playback. Based on our multi-award winning Element Achromatic RCA, the Element Achromatic Tonearm cable is available with the choice of either a right-angle (90°) or straight (180°) entry 5 pin connector.

A stereo tonearm interconnect with an open, neutral sound, offering a worthwhile improvement in performance over the factory-supplied cables included with entry-level tonearms.

Benefitting from Atlas ongoing research and development, the Element Tonearm cable is fitted with our Achromatic non-magnetic RCA plugs and integrated earth tag. The low-mass Achromatic connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path. The signal conductor is a fully shielded high quality OFC copper, designed and constructed to provide maximum resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable, particularly important with such sensitive low-level signals as typically generated by a pick-up cartridge.

The 5 pin tonearm plug is precision-turned and hard gold-plated with PTFE (Teflon™) insulation. Cable entry is from either the side (right angle entry) or from the base (straight entry), please specify when ordering.

FEATURES

• Achromatic RCA
• OFC Conductors
• PFE Dielectric
• 4 core + screen


Please Contact Us if you Require other Lengths

SPECIFICATIONS

• CONSTRUCTION  4 core plus screen

• MATERIAL  OFC

• DIELECTRIC PEF

• SCREEN  Braid OFC, 85%

• CAPACITANCE  83.34 pF/m

• INDUCTANCE  0.512 µH/m

• RESISTANCE  0. 0810 Ohms/m

• OUTSIDE DIAMETER  7.0mm
